Engine Family: All Except L10, B and C Series

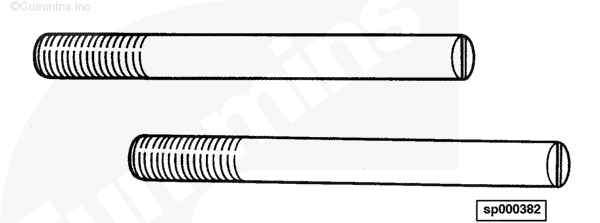

These are miscellaneous size guide pins used to guide various engine parts during assembly or disassembly.
NOTE: Each guide stud is 6 inches long and 2 are needed during installation.
| Part No. | Description |
| 3824454 | Guide Pin (3/8-16 thread) |
| 3824455 | Guide Pin (3/8-24 thread) |
| 3824456 | Guide Pin (7/16-14 thread) |
| 3824457 | Guide Pin (7/16-20 thread) |
| 3824458 | Guide Pin (½-13 thread) |
| 3824459 | Guide Pin (9/16-12 thread) |
| 3824460 | Guide Pin (9/16-18 thread) |
| 3824461 | Guide Pin (5/8-11 thread) |
| 3824462 | Guide Pin (5/8-18 thread) |
| 3163933 | Guide Pin (m22x1.5 thread) |
| 3163934 | Guide Pin (m12x1.75thread) |
| 3163935 | Guide Pin (m10x1.25 thread) |
| 3163936 | Guide Pin (m8x1.0 thread) |
Last Modified: 31-Jul-2003
