Engine Family: All Except B Series
This tool is a universal puller to pull cylinder liners from the block. Order appropriate puller plate as needed separately. Puller plates are not included in the kit.

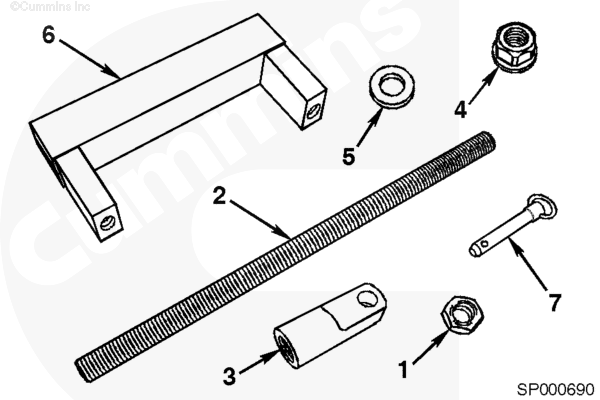

| Ref. No. | Part No. | Description |
| 1 | 3163748 | Regular Nut |
| 2 | 3163746 | Allthread Rod |
| 3 | 3163747 | Connector |
| 4 | 3012526 | Hexagon Nut |
| 5 | 3163904 | Washer |
| 6 | 3162877 | Remover Support |
| 7 | 3162878 | Detent Pin |
| 3163877 | Needle Bearing (not shown) | |
| The following puller plates must be ordered separately as desired. | ||
| 3162880 | Puller Plate (NT, V28, V903) | |
| 3162881 | Puller Plate (H.4 7/8 bore) | |
| 3162882 | Puller Plate (H, V12, 5 1/8 bore) | |
| 3162883 | Puller Plate (C, 4 7/16 bore) | |
| 3162884 | Puller Plate (J, 4 1/8 bore) | |
| 3162885 | Puller Plate (V378, V504, V555) | |
| 3162886 | Puller Plate (K19, K38, K50) | |
| 3164979 | Puller Plate (L10, M11) | |
| 3822786 | Puller Plate (6CT 8.3) | |
| 3162462 | Puller Plate (S600) | |
| 3163751 | Puller Plate (170 mm bore) | |
Last Modified: 09-Feb-2004
