Engine Family: All Except B Series and L10/M11
This puller is designed to pull all “wet” liners from 4 inches to 6 ¼ inches bore. This puller is for all Cummins plus Caterpillar engines. The puller can be adapted to Detroit Diesel engines by adding 3376029 Liner Puller Kit.
NOTE: Use 3823784 Puller Ring when pulling liners when a counterbore repair sleeve has been installed. The ring will hold the repair sleeve in place. Order this item separately.

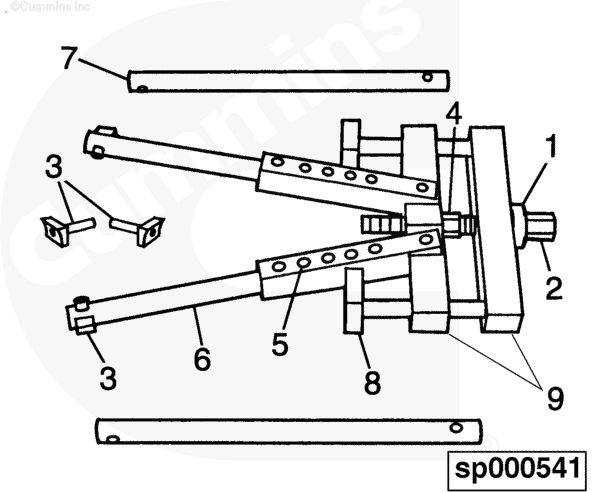

| Ref. No. | Part No. | Description |
| 1 | 3376016 | Thrust Bearing Assembly |
| 2 | 3376017 | Special Lifting Bolt |
| 3 | **3376018 | Arm Extension Foot |
| 4 | 3376019 | Puller Bushing |
| 5 | 3376020 | Holding Pin |
| 6 | 3376752 | Short Arm Extension (9 ½ in.) |
| 7 | *3376753 | Long Arm Extension (14 ½ in.) |
| 8 | 3824406 | Liner Hold Down Foot (Includes arm, foot, pin) |
| 9 | 3824407 | Top Plate & Lifting Bar Ass’y |
| * Optional | ||
| ** Contains 1 Foot & 1 capscrew when ordered by itself. | ||
Last Modified: 09-Feb-2004
