Engine Family: All K Series, QSK19, QSK23, QSK78
These tools are used to cut the cylinder liner block counterbore ledge as required if the ledge is worn, damaged or if liner protrusion is higher than specified.

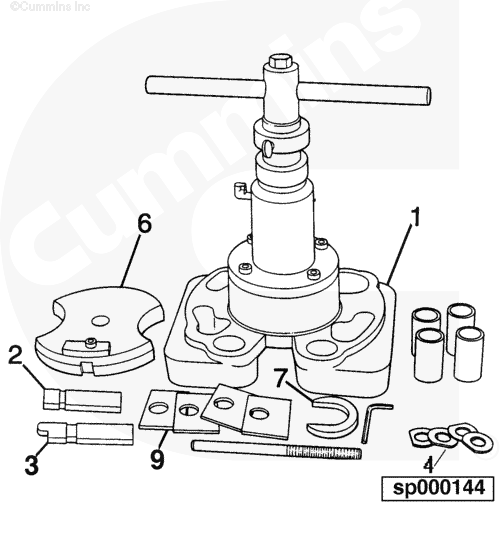

| Ref. No. | Part No. | Description |
| 3376564 | Drive Unit Assembly | |
| 3376498 | Counterbore Conversion Kit | |
| 1 | 3164901 | Base Plate |
| 2 | 3376567 | Tool Bit (For Thick Flange Liner) |
| 4 | 3375830 | Flat Washer |
| 7 | 3823608 | Depth Set Collar |
| 6 | 3824110 | Counterbore Tappered Cutter Plate Ass’y |
| 3823376 | O’Ring | |
| 3823377 | Elastic Locknut | |
| 2 | 3376565 | Tool Bit (For 7.4925 C’bore) |
| 3 | 3822216 | Tool Bit ((K6 7.4000 C’bore) For Undercut Radius) |
| 3 | *3163843 | Tool Bit (K19, QSK19 C’bore Ledge Chamfering Cutter) |
| *NOTE: The 3163843 Tool Bit must be purchased separately. | ||
Last Modified: 10-Mar-2004
