Engine Family: All Except B and C Series

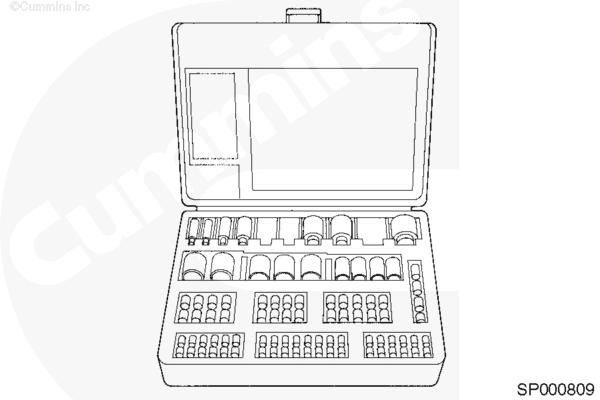

This kit contains an assortment of open end thread inserts that can be used to salvage damaged threads in various components. Complete instructions are included in the lid. These are the locking pin type thread inserts. All recommended drill sizes and tap sizes are included.
| Part No. | Description |
| 3375023 | Thread Insert Installation Tool(15/16) |
| 3375026 | Thread Insert Installation Tool(3/8) |
| 3375029 | Thread Insert Installation Tool(7/16) |
| 3375032 | Thread Insert Installation Tool(½) |
| 3375034 | Thread Insert Installation Tool(5/8) |
| 3375036 | Thread Insert Installation Tool(¾) |
| 3375038 | Thread Insert Installation Tool(1) |
| The following thread insert refill kits are available. | |
| Each refill kit contains 1 case of 10 inserts. | |
| 3375022 | Thread Inserts – SAE (5/16-18 (Thin wall)) |
| 3375024 | Thread Inserts – SAE (3/8-16) |
| 3375025 | Thread Inserts – SAE (3/8-24) |
| 3375027 | Thread Inserts – SAE (7/16-14) |
| 3375028 | Thread Inserts – SAE (7/16-20) |
| 3375030 | Thread Inserts – SAE (½-13) |
| 3375031 | Thread Inserts – SAE (½-20) |
| 3375033 | Thread Inserts – SAE (5/8-18) |
| 3375035 | Thread Inserts – SAE (¾-16) |
| 3375037 | Thread Inserts – SAE (1-18) |
| 3375141 | Thread Inserts – SAE (¼-20) |
| 3375143 | Thread Inserts – SAE (5/8-11) |
| 3375430 | Thread Inserts – SAE (5/16-18 (Thick Wall)) |
Last Modified: 31-Jul-2003
