Engine Family: NH 5 1/8, NT 5 ½, V28, V903, K

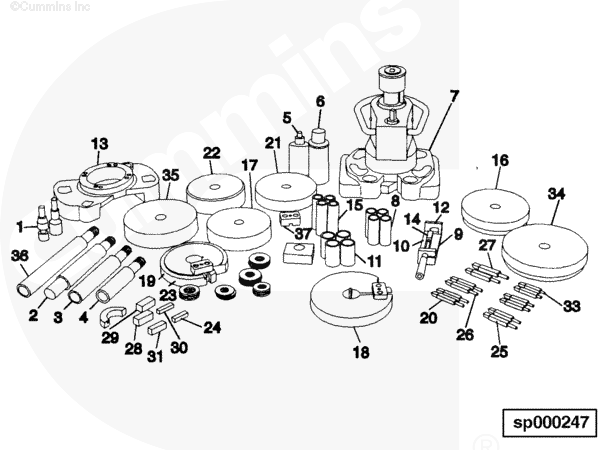

This tool is used to bore the upper counterbore in the cylinder block for upper press fit repair sleeves or oversize flange liners. Separate kits may be ordered as desired. For lower press fit tooling, refer to 3823325 for NT, N14 series and 3824119 for K series.
| Ref. No. | Part No. | Description |
| 3823352 | Counterbore Drive Unit and Misc. Small Parts (All Engines Listed) | |
| 1 | ST 1177-27 | Universal Drive |
| 2 | ST 1168-37 | Bushing Driver Handle |
| 3 | ST 1168-46 | Long Bushing Driver Shaft |
| 4 | ST 1168-47 | Short Bushing Driver Shaft |
| 5 | 3823718 | Retaining Compound |
| 6 | 3824715 | Primer T |
| 3377351 | Base Plate and Micrometer Block Assembly (N855, V28, V903, (4 7/8, 5 1/8 and 5 ½ Bore)) | |
| 7 | ST 1168-28 | Base Plate |
| 8 | ST 1168-29 | Stud Adapter (1 in. x 2 ¼) |
| 9 | 3376552 | Micrometer Block Assembly |
| 10 | ST 1287-35 | Setting Standard |
| 11 | ST 1168-40 | Stud Adapter (¾ x 2 ¾) |
| 3377352 | Base Plate and Micrometer Block Assembly (All K Series, QSK19, QSK23, QSK78) | |
| 12 | 3375826 | Micrometer Block Assembly |
| 13 | 3164901 | Base Plate |
| 14 | 3375828 | Setting Standard |
| 15 | 3375829 | Stud Adapter |
| 3377353 | Cutter/Plate/Driver Ass’y (N855, V12 (4 7/8 and 5 1/8 Bore)) | |
| 16 | ST 1168-36 | Bushing Driver |
| 17 | ST 1168-44 | Guide Plate |
| 18 | ST 1168-51 | Cutter Plate Key |
| 19 | ST 1168-97 | Cutter Plate Assembly |
| 20 | 3823674 | Cutter Assembly |
| 3377354 | Cutter/Plate/Driver Ass’y (N855, V28, V903 (5 ½ Bore)) | |
| 16 | ST 1168-36 | Bushing Driver |
| 21 | ST 1168-43 | Guide Plate (N855, V28) |
| 22 | ST 1168-45 | Guide Plate (V903) |
| 18 | ST 1168-51 | Cutter Plate Key |
| 23 | 3376782 | Cutter Plate Assembly |
| 24 | 3376784 | Depth Spacer Block |
| 20 | 3823674 | Cutter Assembly |
| 3377355 | Cutter/Plate/Driver Ass’y (All K Series) | |
| 18 | ST 1168-51 | Cutter Plate Key |
| 25 | 3376187 | Cutter Ass’y (.068/.073R) |
| 26 | 3375443 | Cutter Ass’y (.057/.067R) |
| 27 | 3375822 | Cutter Ass’y (.008/.012R) |
| 28 | 3375823 | Depth Spacer Block |
| 29 | 3375824 | Depth Spacer Block |
| 30 | 3375831 | Depth Spacer Block |
| 31 | 3376189 | Depth Spacer Block |
| 32 | 3824054 | Cutter Plate Ass’y |
| 3376622 | Driver/Plate Ass’y (All KV Series) | |
| 33 | 3376219 | Cutter Ass’y (¼ Offset) |
| 34 | 3376223 | Bushing Driver |
| 35 | 3376224 | Guide Plate |
| 36 | 3376226 | Sleeve Driver Shaft |
| 37 | 3376365 | Cutter Holder Plate |
| 32 | 3824054 | Cutter Plate Assembly |
| 18 | ST 1168-51 | Cutter Key |
| 3823552 Plastic Case is available to store the micrometer block assembly, setting standard, tool bits and allen wrenches. | ||
| Note: To convert ST 1168 to current cutter plate and cutter for V903, N855, and V28 (5 ½ Bore Engines) use 3823674, 3376782 and 3376784. | ||
