Engine Family: N855 Series
This is a special kit designed to cut the counterbores for “lower press fit liners”. This kit contains all the necessary tools required to cut the lower press fit liner counterbore of the upper deck of the cylinder block for installing counterbore repair sleeves.

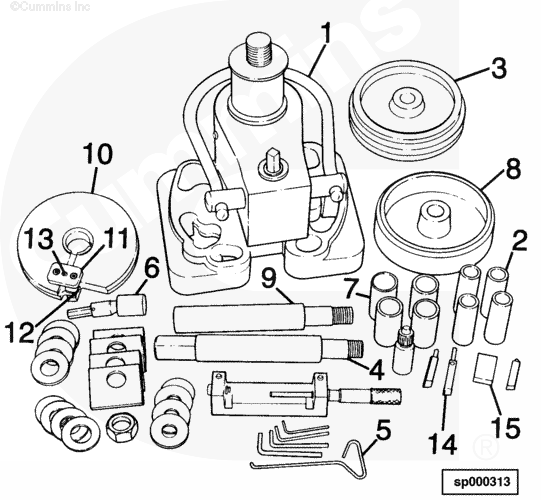

| Ref. No. | Part No. | Description |
| 1 | 3823352 | Basic Machine (Drive Unit) |
| 2 | ST 1168-29 | Stud Adapter |
| 3 | ST 1168-36 | Driver Plate |
| 4 | ST 1168-37 | Driver Handle |
| 5 | ST 1168-51 | Cutter Key |
| 6 | ST 1177-27 | Universal Drive |
| 7 | ST 1168-40 | Stud Adapter |
| 3823353 | Cutter Plate Kit | |
| 8 | ST 1168-43 | Guide Plate |
| 9 | ST 1168-47 | Driver Shaft |
| 10 | 3822955 | Cutter Plate Ass’y |
| 11 | ST 1168-17 | Cutter Plate Holder |
| 12 | ST 1168-20 | Swivel Pad Set Screw |
| 13 | ST 1168-56 | Ball Spring Plunger Screw |
| 14 | 3823674 | Cutter Assembly |
| 15 | 3823291 | Depth Set Block |
| 3823606 | Depth Set Stop Gauge |
Last Modified: 31-Jul-2003
