Cummins Service Products Catalog – Tool ST 561Connecting Rod Checking Fixture

SMALL | MEDIUM | LARGE

Engine Family: All

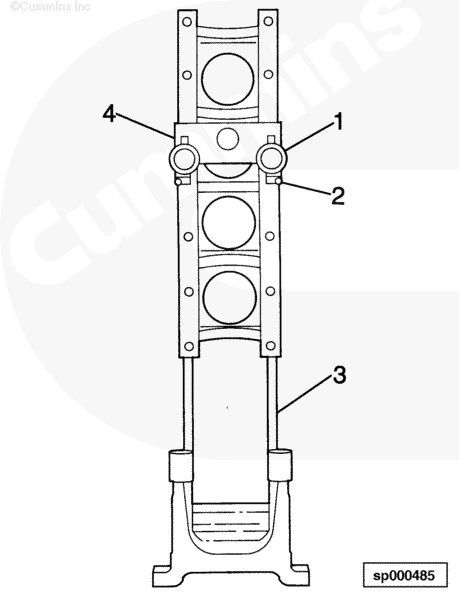

This special fixture is used to check the connecting rod length, bend and twist. The connecting rod must have the cap assembled for this test. Dial indicators show if the length and bore alignment are acceptable. A feeler gauge is used to check twist. Use appropriate locating mandrels reference ST 562.

Ref. No. Part No. Description
1 ST 561-6  Dial Indicator
2 3375093  Contact Point
3 ST 561-5101  Base Assembly
4 ST 561-5102  Indicator Bracket Ass’y
