Cummins Service Products Catalog – Tool ST562Connecting Rod Mandrel

SMALL | MEDIUM | LARGE

Engine Family: See Below

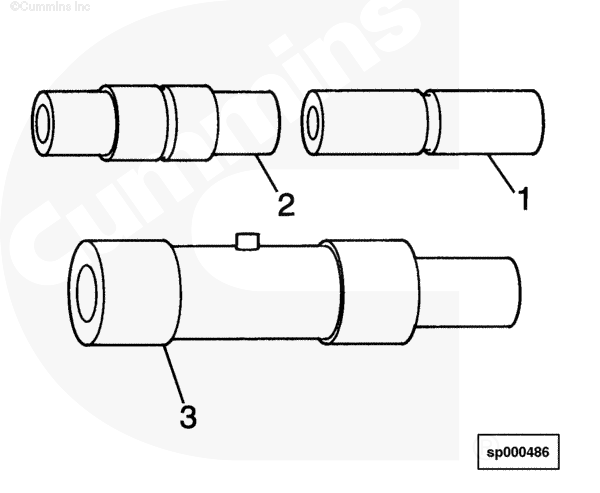

Locating mandrels are used to locate the connecting rod in ST 561 Connecting Rod Checking Fixture. The small mandrels fit in the piston pin bore and the large expanding mandrel fits in the crankpin bore.

Ref No.  Part No.  Description
  ST 562  Connecting Rod Mandrel Kit (Complete Tool (C & J)
3 ST 562-5001 Connecting Rod Mandrel (Crankpin end)
1 ST 562-2 Connecting Rod Mandrel (Piston pin end less bushing) (C, J, and V-555)
2 ST 562-3 Connecting Rod Mandrel (Piston pin end with bushing) (C, J, and V-555)
1 ST 562-9 Connecting Rod Mandrel (Piston pin end less bushing) (C)
  ST 563  Connecting Rod Mandrel Kit (Complete Tool (N855 & N743))
3 ST 563-5001 Connecting Rod Mandrel (Crankpin End)
2 ST 563-2 Connecting Rod Mandrel (Piston Pin End-Less Bushing)
1 ST 563-3 Connecting Rod Mandrel (Piston Pin End — with Bushing) (V28 Eng.)
3 ST 758 Connecting Rod Mandrel (Crankpin End) (V-12, V-28)
  3823287  Connecting Rod Mandrel Kit (Complete Tool) (NH & NT)
3 3823301 Connecting Rod Mandrel (Crankpin End)
2 ST 563-2 Connecting Rod Mandrel (Pin End – less Bushing)
1 ST 563-3 Connecting Rod Mandrel (Piston Pin End — with Bushing)
  3823785  Connecting Rod Mandrel (Complete Tool) (N14)
3 3823786 Connecting Rod Mandrel (Crankpin end)
1 3823787 Connecting Rod Mandrel (Piston pin end less bushing)
2 3823788 Connecting Rod Mandrel (Piston pin end with bushing)
  ST 800  Connecting Rod Mandrel Kit (Complete Tool (V903, V8 265, V6 200, V8 350 and VT8-430))
1 ST 800-6 Connecting Rod Mandrel (Piston pin end less bushing) (V8-265 & V903)
2 ST 800-7 Connecting Rod Mandrel (Piston pin end with bushing) (V8-265 & V903)

  ST 801  Connecting Rod Mandrel Kit (Complete Tool (V6-140, V8-185 and V8-210)
3 ST 801-5001 Connecting Rod Mandrel (Crankpin end)
1 ST 801-2 Connecting Rod Mandrel (Piston pin end less bushing)
2 ST 801-3 Connecting Rod Mandrel (Piston pin end with bushing)
3 ST 1197 Connecting Rod Mandrel (Crankpin End)
  3825185  Connecting Rod Mandrel (Complete Tool) (QST30)
3 3825188 Connecting Rod Mandrel (Crankpin end)
1 3825187 Connecting Rod Mandrel (Piston pin end less bushing)
2 3825186 Connecting Rod Mandrel (Piston pin end with bushing)
  ST 1305  Connecting Rod Mandrel Kit (Complete Tool (K19))
3 ST 1305-1 Connecting Rod Mandrel (Crankpin end) (K19)
2 ST 1305-2 Connecting Rod Mandrel (Piston Pin End — less Bushing) (K19, K38 & K50)
1 ST 1305-3 Connecting Rod Mandrel (Piston Pin End — with Bushing) (K19, K38 & K50)
3 ST 1331 Connecting Rod Mandrel (Crankpin End)
  3165110  Connecting Rod Mandrel Kit (Complete Tool (QSK45/60))
3 3163700 Connecting Rod Mandrel (Crankpin End)
1 3163701 Connecting Rod Mandrel (Piston Pin End — with Bushing)
  3376690  Connecting Rod Mandrel Kit (Complete Tool (L10, M11, ISM))
3 3376691 Connecting Rod Mandrel (Crankpin End)
2 3376692 Connecting Rod Mandrel (Piston Pin End — less Bushing)
1 3376693 Connecting Rod Mandrel (Piston Pin End — with Bushing)
  3823285  Connecting Rod Mandrel Kit (Complete Tool (B Series))
3 3823302 Connecting Rod Mandrel (Crankpin End)
2 3823282 Connecting Rod Mandrel (Piston Pin End — less Bushing)
1 3823281 Connecting Rod Mandrel (Piston Pin End — with Bushing)
  3823286  Connecting Rod Mandrel Kit (Complete Tool (C Series, ISC, & ISL))
3 3823303 Connecting Rod Mandrel (Crankpin End)
2 3823283 Connecting Rod Mandrel (Piston Pin End — with Bushing)
1 3823284 Connecting Rod Mandrel (Piston Pin End — less Bushing)
  3823785  Connecting Rod Mandrel Kit (Complete Tool (91N14))
3 3823786 Connecting Rod Mandrel (Crankpin End)
2 3823787 Connecting Rod Mandrel (Piston Pin End — less Bushing)
1 3823788 Connecting Rod Mandrel (Piston Pin End — with Bushing)
3 3165107 Connecting Rod Mandrel (Crankpin end) (QSK78)
2 3165106 Connecting Rod Mandrel (Piston pin end with bushing) (QSK78 & QSK23)
Last Modified:  18-Dec-2006
