M11 Series – Service Manual – 022-001   Service Tools

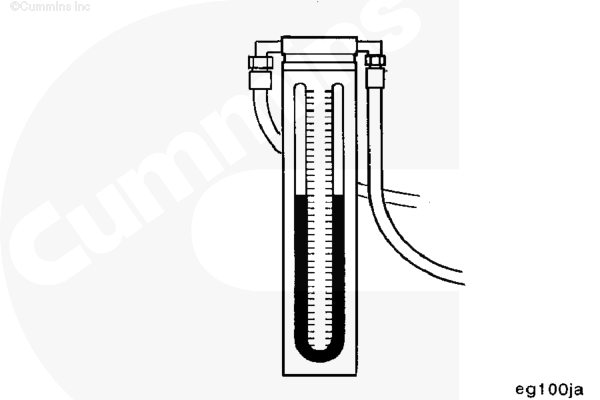

Used to check fuel filter or intake air restriction.

Used with tool, Part No. 3375150, for measuring blowby.

Used to monitor oil contamination.

Used to measure intake manifold pressure. The pressure gauge is not needed if INSITE™ is available.

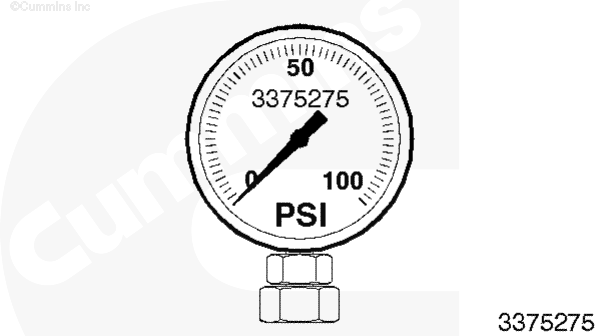

Used to measure lubricating oil pressure. The pressure gauge is not needed in INSITE™ is available.

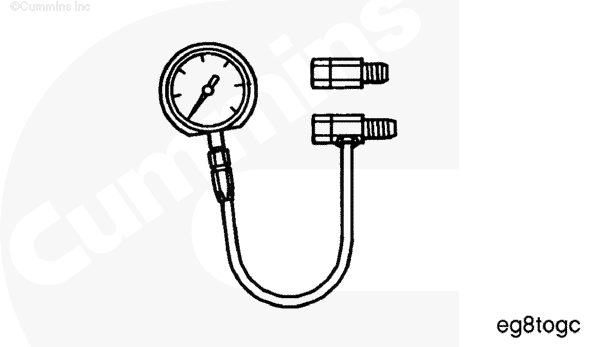

Used to measure fuel pressure. Includes necessary hoses and hardware to attach to a fuel pump. Part No. ST-435-1 is the hose and Part No. ST-435-6 is the pressure gauge.

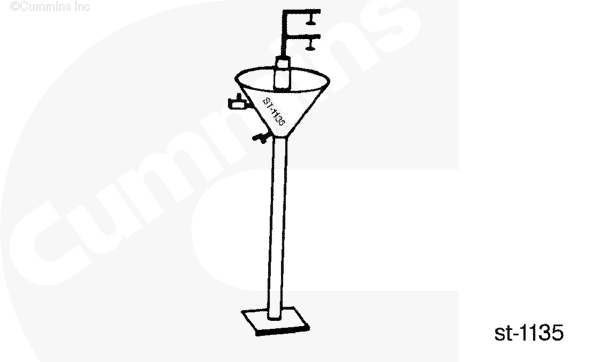

Measure the rate of fuel consumption of a Cummins diesel engine.

Used to measure engine speed (rpm). The digital optical tachometer is not needed if Insite is available.

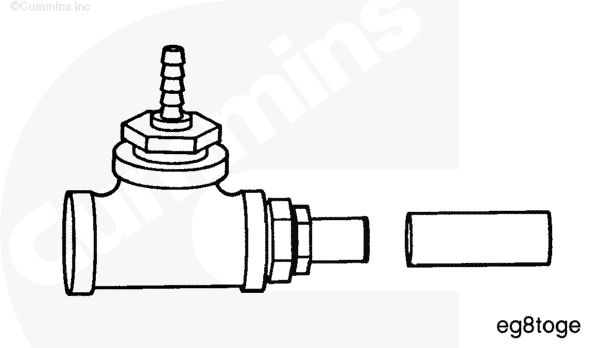

Used with manometer, Part No. ST-1111-3, to measure the engine crankcase pressure.

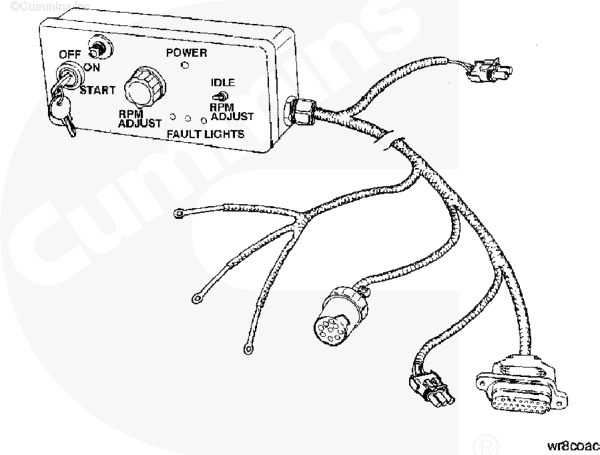

Used on an engine dyno to control the CELECT™/CELECT™ Plus engine.

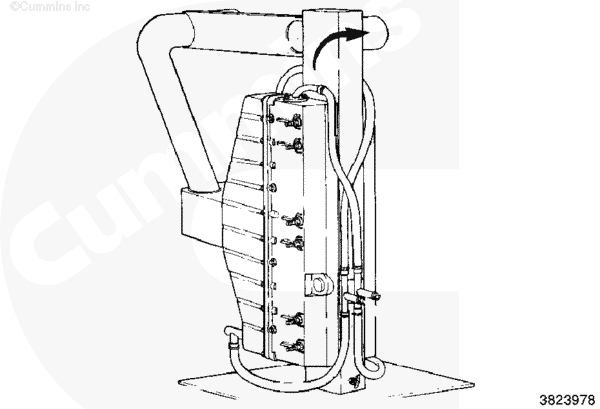

Used to cool intake air when an air-to-air engine is used on an engine dyno.

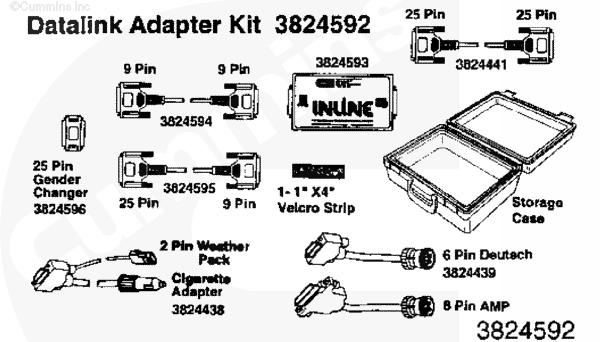

INLINE2 adapter and associated cables are used to connect a computer to an engine datalink.

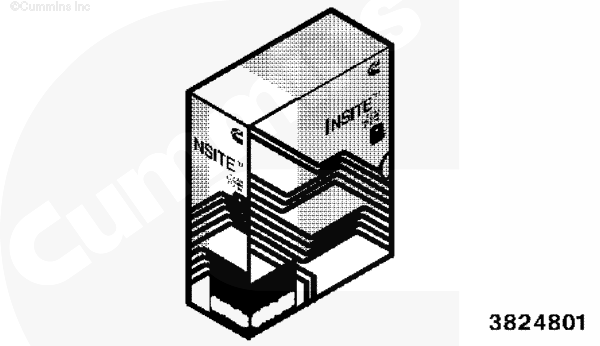

This kit contains INSITE™ software kit, Part No. 3885790, for use with interact system engines. Each software kit can also be ordered separately. The kits are used to troubleshoot, program, and adjust the electronic system.
