M11 Series – Service Manual – 200-002   Flow Diagram, Lubricating Oil System

Table of Contents

Flow Diagram

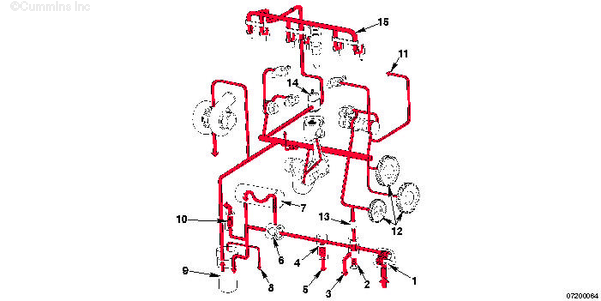

Flow Diagram

 TOC

SMALL | MEDIUM | LARGE

  1. Oil pump
  2. Pressure regulator valve
  3. Oil return to pan
  4. High-pressure relief valve
  5. Oil return to pan
  6. Oil thermostat
  7. Oil cooler
  8. By-pass filtered oil return
  9. Combination oil filter
  10. Filter by-pass valve
  11. Accessory drive and air compressor
  12. Idler gears
  13. Viscosity sensor
  14. STC control valve
  15. STC oil manifold

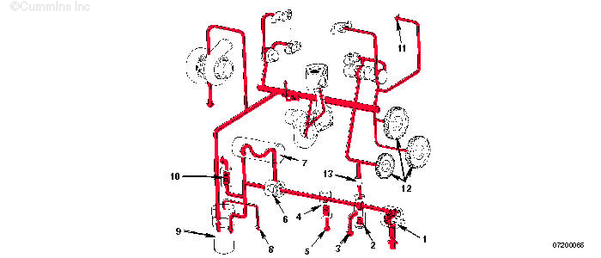

SMALL | MEDIUM | LARGE

  1. Oil pump
  2. Pressure regulator valve
  3. Oil return to pan
  4. High pressure Relief Valve
  5. Oil return to pan
  6. Oil thermostat
  7. Oil cooler
  8. Bypass filtered oil return
  9. Combination oil filter
  10. Filter bypass valve
  11. Accessory drive and air compressor
  12. Idler gears
  13. Viscosity sensor
Last Modified:  01-Mar-2006
