ISB/ISBe Series Engines – FAULT CODE 111

Electronic Control Module (ECM) Microprocessor


Overview

CODE REASON EFFECT
Fault Code: 111
PID: S254
SPN: 629
FMI: 12
LAMP: Red
SRT:

ECM internal hardware error.

Possible no effect or engine will possibly run rough or not start.

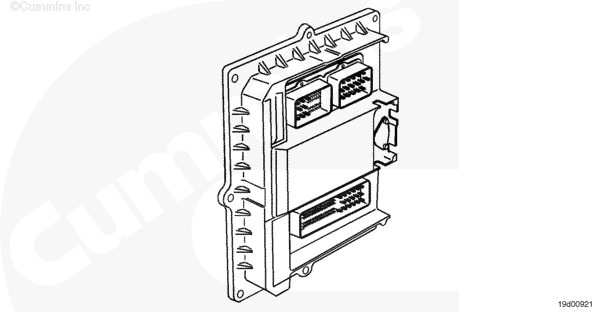

ECM Microprocessor
SMALL | MEDIUM | LARGE

Circuit Description

The ECM is a computer that is responsible for engine control, diagnostics, and user features.

Component Location

The ECM is located on the left side of the engine block.

Shop Talk

This fault code can be caused only by an internal ECM problem. Field repairs are not possible for the ECM.

Refer to Troubleshooting Fault Code t05-111

Last Modified:  26-Oct-2010
