Engine Overspeed Circuit
|
Overview
| CODE | REASON | EFFECT |
| Fault Code: 234 PID: P190 SPN: 190 FMI: 0 LAMP: Red SRT: |
Engine speed signal indicates engine speed has exceeded the overspeed limit. |
Fuel to the injectors disabled until the engine speed falls below the overspeed limit. |
 Engine Overspeed Circuit
|

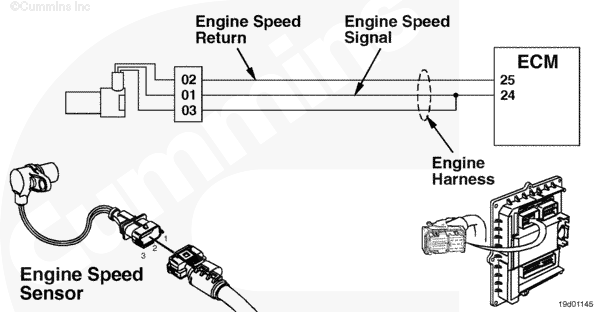

Circuit Description
The engine speed sensor provides engine speed information to the electronic control module (ECM). The sensor generates its signals by sensing the movement of target teeth cast into a tone wheel that is mounted to the crankshaft. The external tone wheel has 58 spaces and a solid section, which indicates that cylinder number 1 is at top dead center.
Component Location
The engine speed sensor is located behind the vibration damper near the crankshaft tone wheel.
Refer to Troubleshooting Fault Code t05-234
