ISB/ISBe Series Engines – FAULT CODE 389

Fan Clutch Circuit Error


Overview

CODE REASON EFFECT
Fault Code: 389
PID: S033
SPN: 647
FMI: 11
LAMP: Yellow
SRT:

Error detected in the fan clutch circuit.

The fan can be on or off all of the time or is damaged.

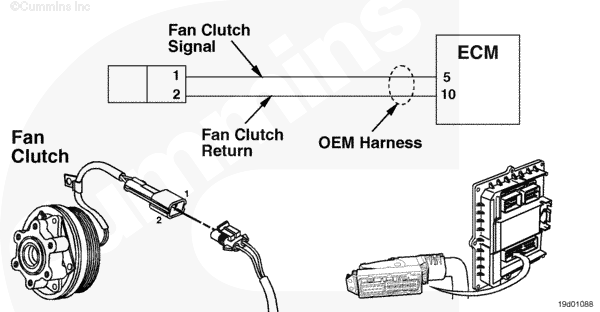

Fan Clutch Circuit
SMALL | MEDIUM | LARGE

Circuit Description

The electronic control module (ECM) can control the cooling fan based on inputs from the coolant temperature sensor and intake manifold temperature sensor.

Component Location

The fan clutch is located on front of the engine.

Shop Talk

Some applications will also provide inputs to the ECM for auxiliary device cooling (e.g., air conditioner pressure, power steering, and transmission temperature) or a manual fan switch for fan control. Verify that the features and parameters are set correctly for fan control.

Refer to Troubleshooting Fault Code t05-389

Last Modified:  26-Oct-2010
