CM870 and ISX Engines – 022-001   Service Tools

Electronic Engine Controls

Tool Number

3886388
INSITE™ Software Kit

Used to troubleshoot, program, and adjust Signature engines.Please refer to your local Cummins Authorized Repair Location for part number.
Tool Number

3162991
Engine Brake Breakout Cable

Used to troubleshoot engine brake issues.
Tool Number

3163095

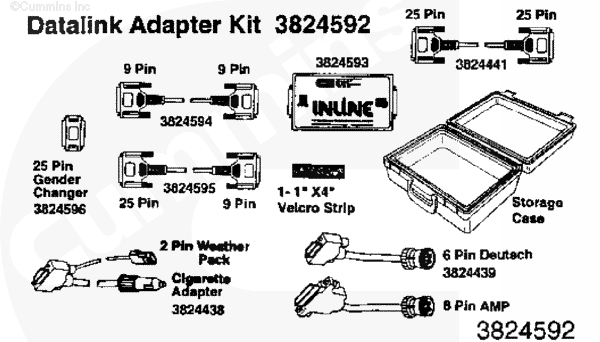

Datalink Adapter Kit

INLINE™ II adapter and associated cables are used to connect a computer to an engine datalink.
Tool Number

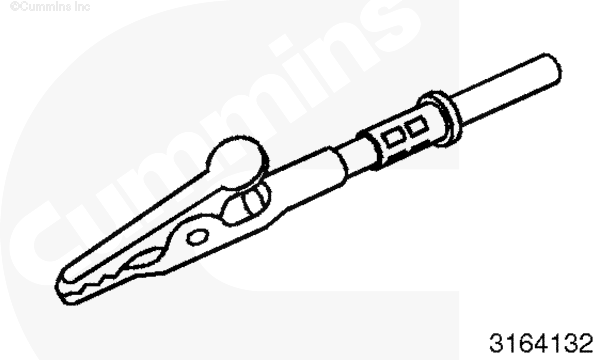

3164132
Female Deutsch Test Lead

Used to test electrical circuits.
Tool Number

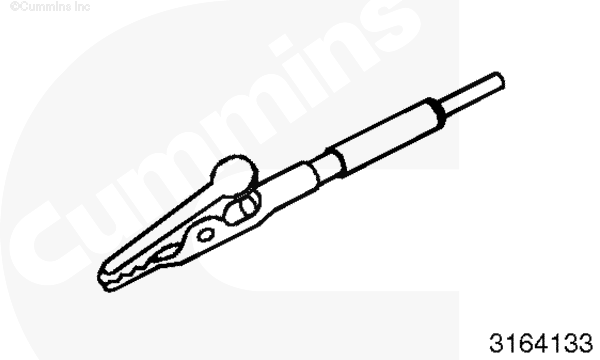

3164133
Deutsch Male Test Lead

Used to test electrical circuits.
Tool Number

3164185
Bench Top Calibration Adapter Harness, Signature and ISX with CM870 Control Module

Used to calibrate electronic control modules off the engine (refer to Bulletin No. 3377791).
Tool Number

3164572
Wiring Repair Kit, Signature and ISX engines with CM870 Control Module
Tool Number

3164596

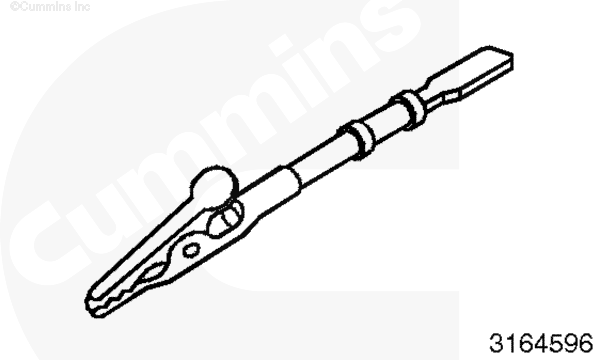

Framatome Male Test Lead

Used to test electrical circuits.
Tool Number

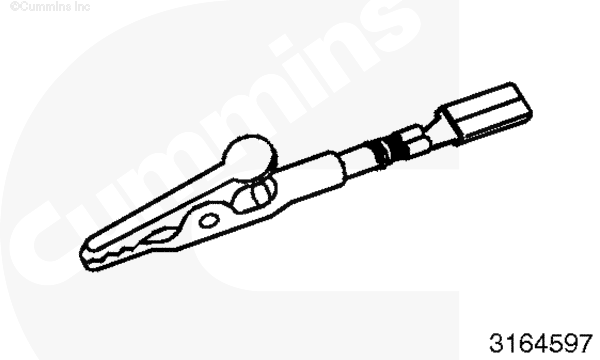

3164597
Framatome Female Test Lead

Used to test electrical circuits.
Tool Number

3377161

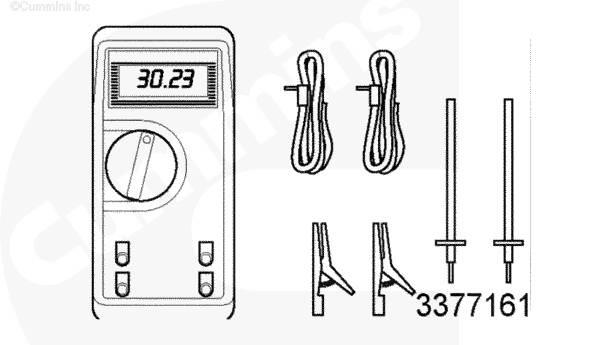

Multimeter

Measure electrical circuits; voltage (volts), resistance (ohms), and current (amps).
Tool Number

3822608

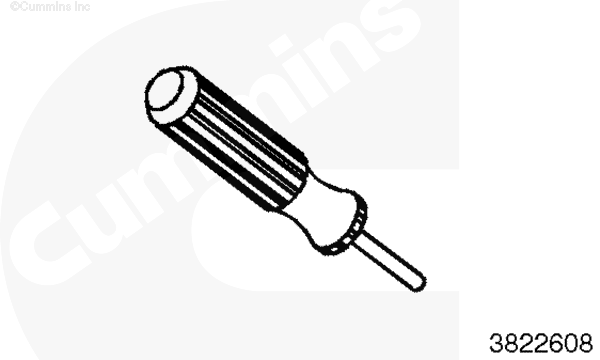

Weather-Pack Terminal Removal Tool

Used to repair Weather-Pack connectors.
Tool Number

3822758

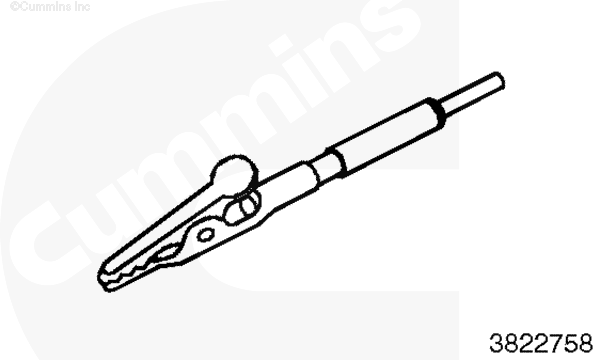

Deutsch Male Test Lead

Used to test electrical circuits.
Tool Number

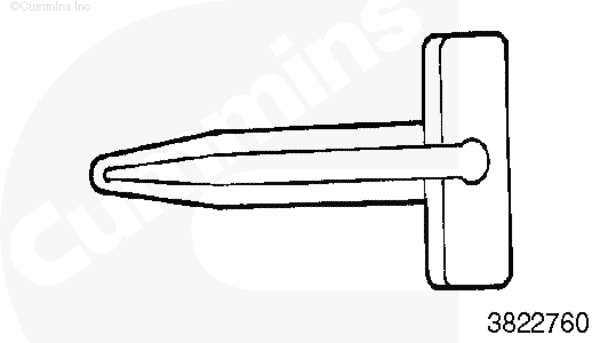

3822760
Deutsch Terminal Removal Tool (Blue)

Used to repair Deutsch connectors.
Tool Number

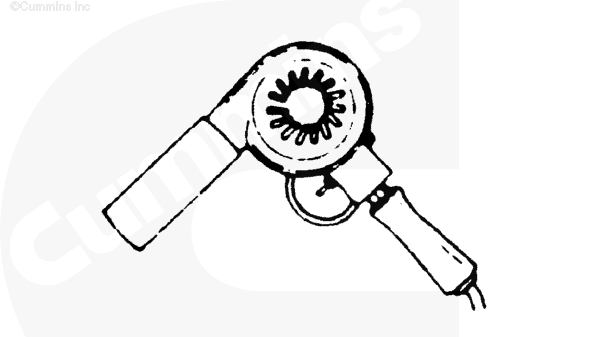

3822860
Heat Gun

Used to repair connector wires.
Tool Number

3822917
Deutsch Female Test Lead

Used to test electrical circuits.
Tool Number

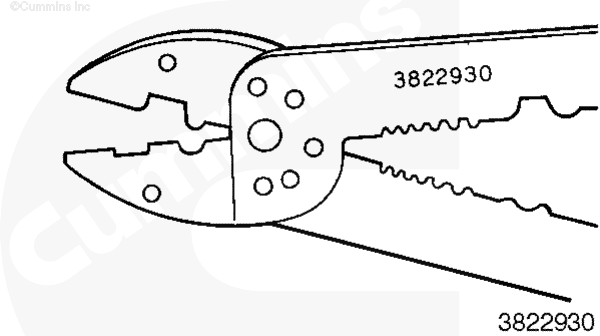

3822930
Wire Crimping Pliers

Used when repairing connector wires.
Tool Number

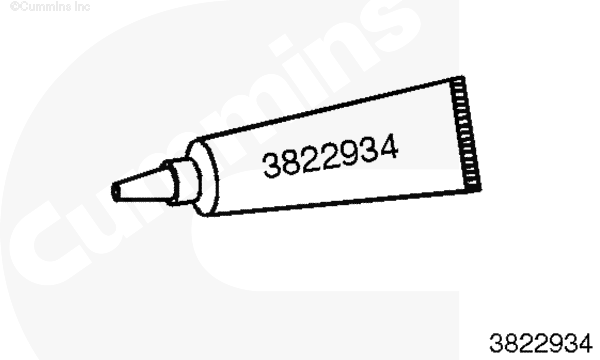

3822934
Lubricant DS-ES

Used to lubricate connector before installation.
Tool Number

3824815
Deutsch Terminal Removal Tool (Red)

Used to repair Deutsch 50-pin connectors.
Tool Number

3824816
Deutsch Terminal Removal Tool (Yellow)

Used to repair Deutsch 9-pin connectors.
Tool Number

3823843

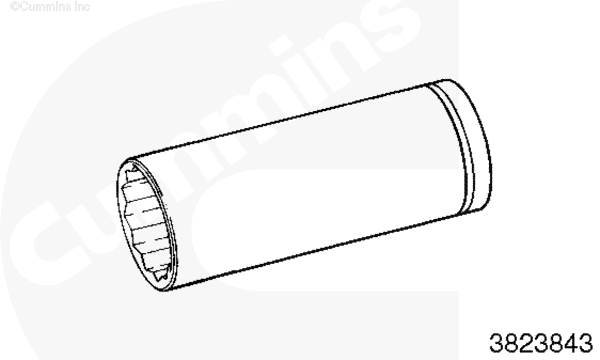

Deep Well Socket (1-1/4 inch)

Used to remove and install sensors and actuators.
Tool Number

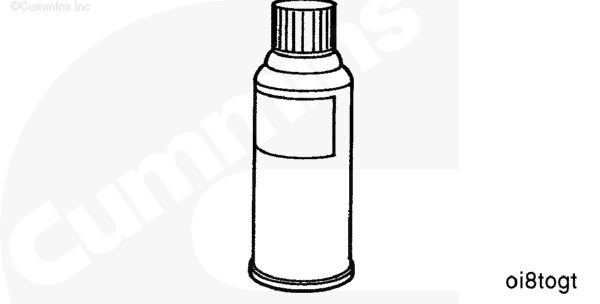

3824510
Electrical Contact Cleaner

Used to clean electrical contacts and connectors.

Last Modified:  08-Oct-2002
