ISC, ISCe, QSC8.3, ISL, ISLe3, ISLe4 and QSL9 Engines – 022-001   Service Tools

Table of Contents

Exhaust System

Exhaust System

 TOC
Tool Number

ST-1111-3
Manometer

Used to measure exhaust restriction.

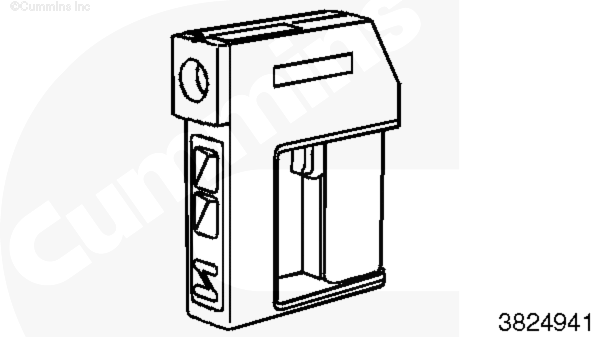

Tool Number

3824941
Infrared Thermometer

Used to measure the surface temperature of exhaust components.
Tool Number

3164487
Infrared Thermometer

Used to measure the surface temperature of exhaust components.
Tool Number

ST-1273
Pressure Gauge

Used to measure inches of mercury (in Hg) pressure.
Tool Number

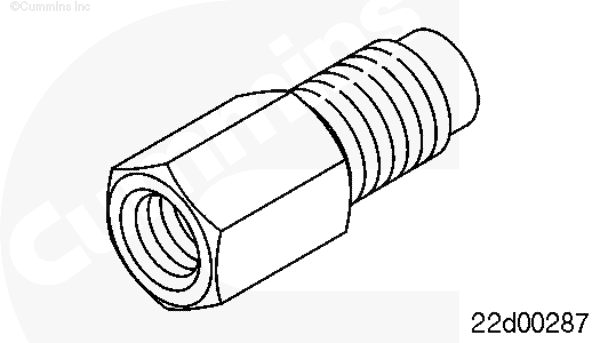

4918576
Exhaust Restriction/Pressure Adapter

Used to convert aftertreatment temperature sensor ports to 1/8″ NPT pipe thread so that service tool ST-1273 can be used to measure exhaust pressure.
Tool Number

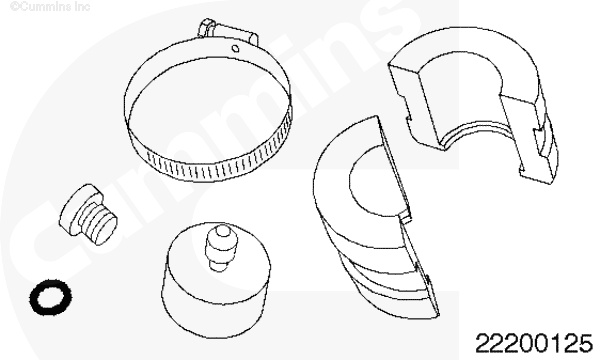

4918625
EGR Cooler Leak Check Kit

Used to pressure test the EGR cooler.
Tool Number

4918709

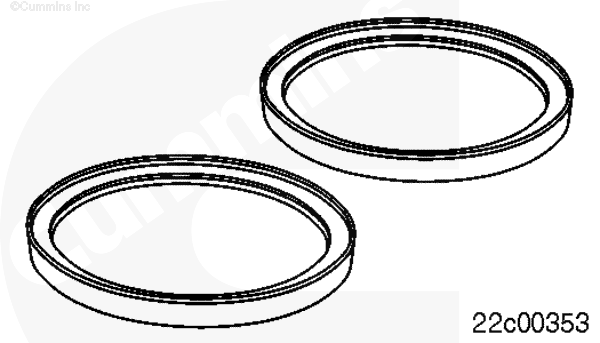

Exhaust Manifold Seal Installer

Used to install the exhaust manifold seal.
Tool Number

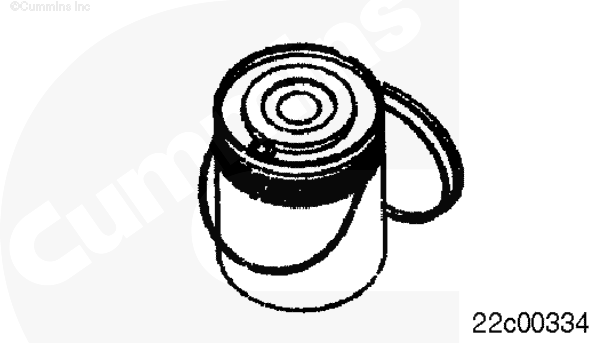

4918839

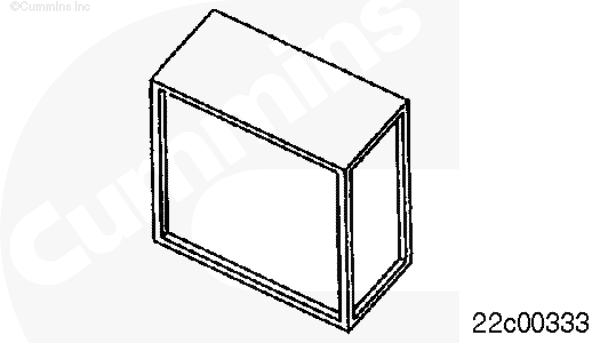

Diesel Particulate Filter Cleaner HEPA Filter

Used to replace the HEPA filter on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

4919054
Diesel Particulate Filter Cleaner HEPA Filter

Used to replace the HEPA filter on diesel particulate filter cleaner, Part Number 4919052.
Tool Number

4918840

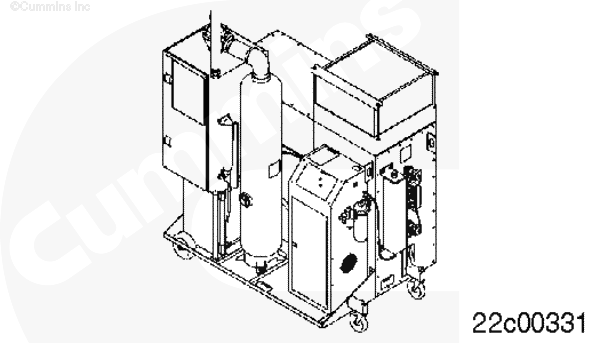

Diesel Particulate Filter Cleaner

This machine is used with diesel particulate filter cleaner adapter kit, Part Number 4918893 or 4919182, to clean the diesel particulate filter once it is removed from the vehicle. (U.S.A. only. Not intended for use in Canada.)
Tool Number

4919052
Diesel Particulate Filter Cleaner

This machine is used with diesel particulate filter cleaner adapter kit, Part Number 4918893 or 4919182, to clean the diesel particulate filter once it is removed from the vehicle. (For use in the U.S.A. and Canada.)
Tool Number

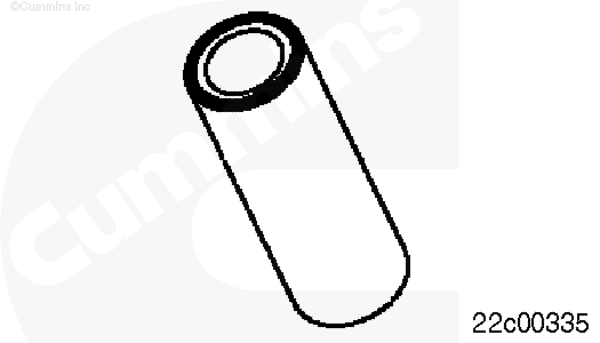

4918841
Diesel Particulate Filter Cleaner Vacuum Filter

Used to replace the vacuum filter on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

4918842

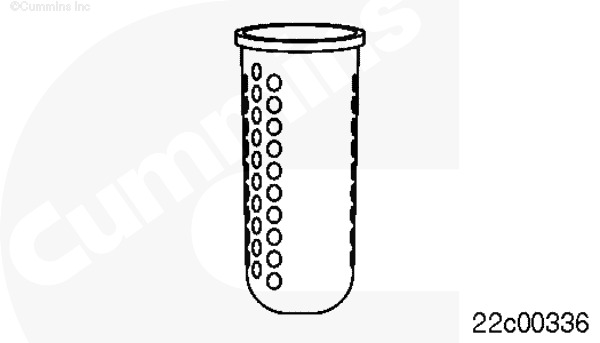

Diesel Particulate Filter Cleaner Canister Filter

Used to replace the canister filters on diesel particulate filter cleaner, Part Number 4918840. Two are required per machine.
Tool Number

4919053
Diesel Particulate Filter Cleaner Canister Filter

Used to replace the canister filters on diesel particulate filter cleaner, Part Number 4919052. Two are required per machine.
Tool Number

4918851

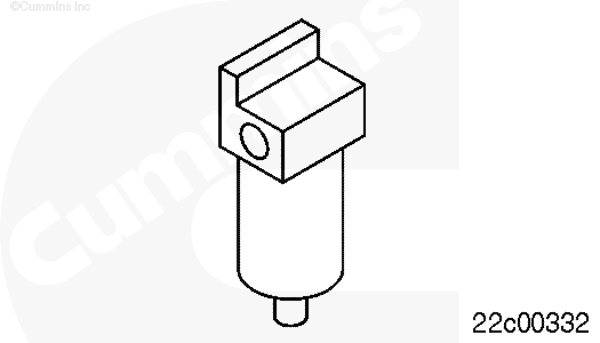

Diesel Particulate Filter Cleaner Water Separator

Used to replace the water separator on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

4919172

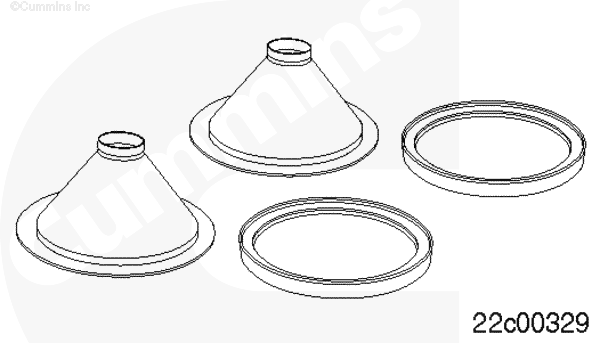

Diesel Particulate Filter Cleaner Adapter Kit

Used with Part Number 4919052 to adapt the diesel particulate filter to the cleaner. Software unlock card, Part Number 4919055, is includes in this adapter kit to upload the required cleaning parameters.
Tool Number

4918896
Diesel Particulate Filter Cleaner Oil Separator Filter

Used to replace the oil separator filter on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

4919508

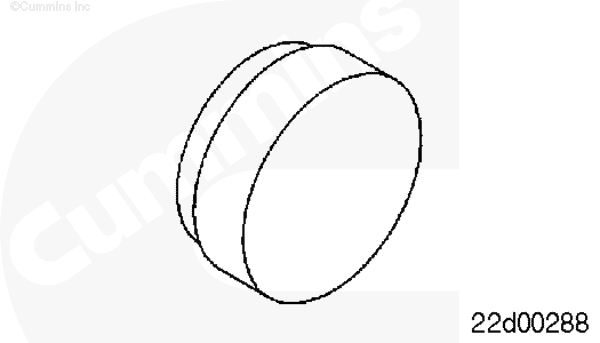

Air Handling Clean Care Kit

Contains a variety of caps to prevent contamination of vehicle air handling plumbing during service procedures.
Tool Number

4919182
Diesel Particulate Filter Cleaner Adapter Kit

Used with Part Number 4919052 or 4918840, to adapt an aftermarket or reto-fit diesel particulate filter to the cleaner.

Last Modified:  09-Nov-2009
