Diesel Engines Overhead Camshafts

without comments

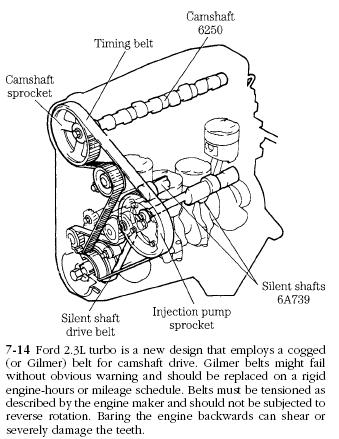

Disengage the drive chain or belt (Fig. 7-14). Camshaft mounting provisions vary; some ride in split bearings and are lifted vertically, others slip into full-circle bearings and might require a special tool to open the valves temporarily for lobe clearance during camshaft withdrawal. Split bearing journals must be assembled exactly as originally found. Make certain that bearing caps are clearly marked for number and orientation. Loosen the caps one at a time, working progressively from the center cap out to the ends of the shaft. (Center, first cap right of center, first cap left of center, second cap right of center, and so on.)

camshaft Diesel Engines Overhead Camshafts
