Centinel System – Repair Manual – 022-001   Service Tools

Engine Testing

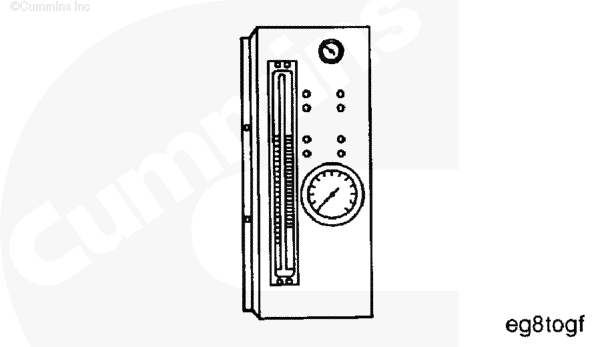

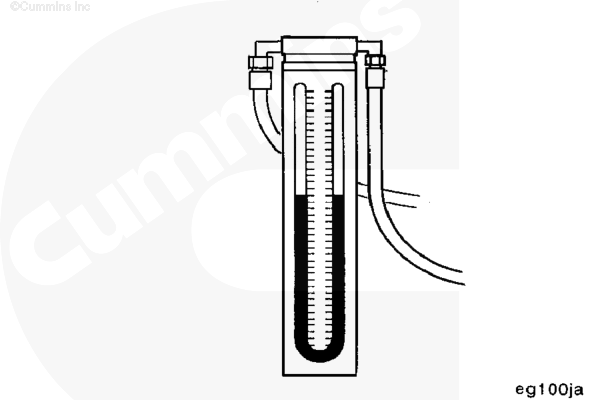

Tool Number

ST-1111-3

Manometer

Use for measuring blowby and intake air restriction

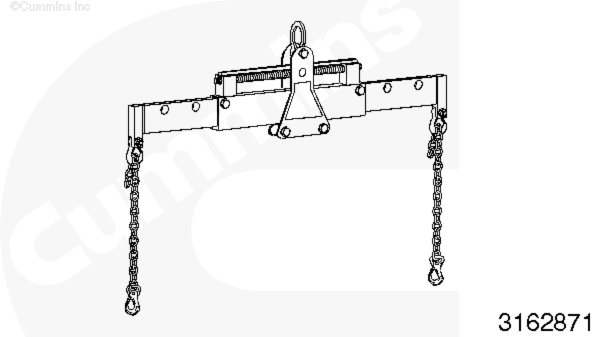

Tool Number

3162871

Engine Lifting Fixture

Use to lift the engine.

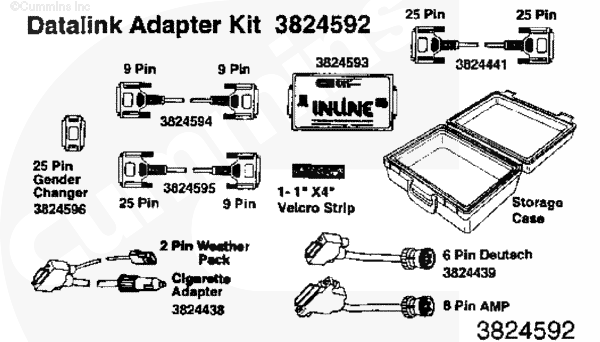

Tool Number

3163682

Datalink Adapter Kit — Inline II

Inline adapter and associated cables are used to connect a computer to an engine datalink.

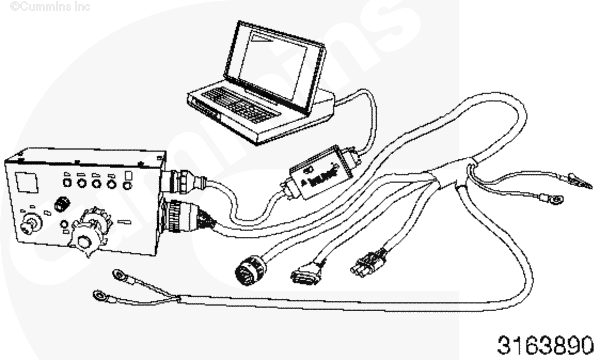

Tool Number

3163890

Engine Controller

Use to test engine separate from the chassis system.

Tool Number

3163895

Harness Extension

Extends engine controller harness, Part Number 3164242, 20 ft.

Tool Number

3164185

Benchtop Calibration Cable

Use with parent cable, Part Number 3163151, power adapter, Part Number 3824102, and the Inline II adapter, Part Number 3163095.

Tool Number

3164242

ISX/ISM Engine Controller Harness (10ft)

Use to connect the engine controller, Part Number 3163890, to a CM870 ECM.

Tool Number

3376375

Fuel Measuring Device

Use to measure the rate of fuel consumption of a Cummins diesel engine.

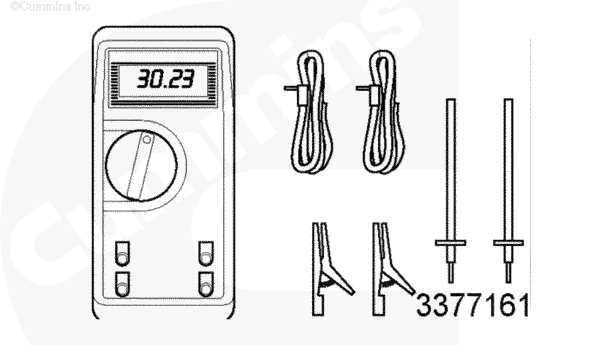

Tool Number

3377161

Digital Multimeter

Use to measure pressures, vacuums, and temperatures.

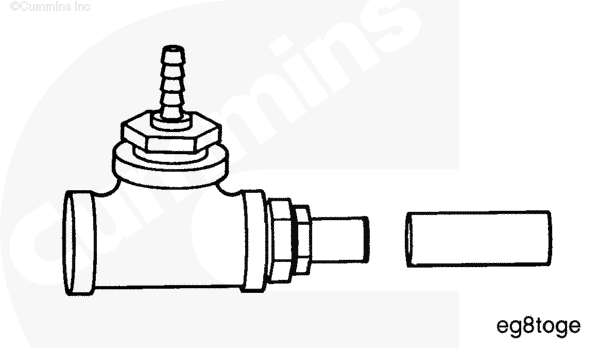

Tool Number

3822567

Blow-by Tool (0.354 orifice)

Used with manometer, Part Number ST-1111-3, to check engine crankcase blow-by.

Tool Number

3822995

Pressure Gauge (0 to 60 psi)

Use to measure coolant pressure.

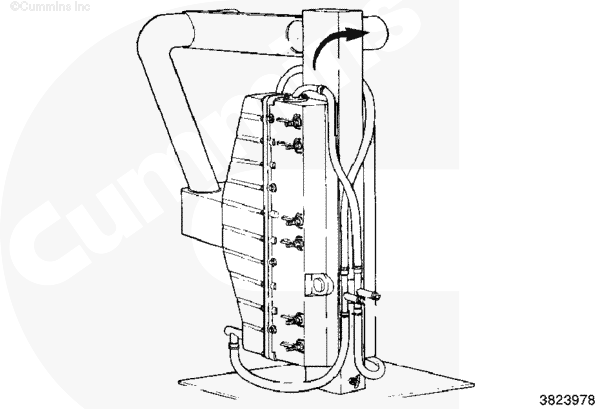

Tool Number

3823978

Dyno-Room Charge Air Cooler

Use to cool intake air when an air to air engine is used on an engine dyno.

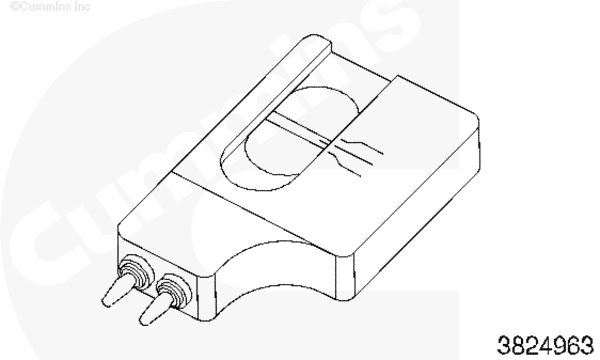

Tool Number

3824963

Thermocouple Module

This module converts the digital multimeter into a thermometer via standard banana plugs.

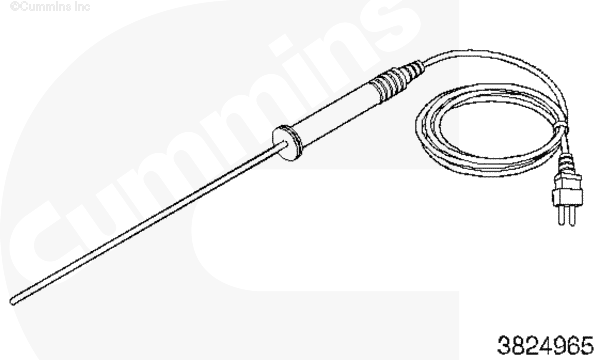

Tool Number

3824965

Temperature Immersion Probe

Tool Number

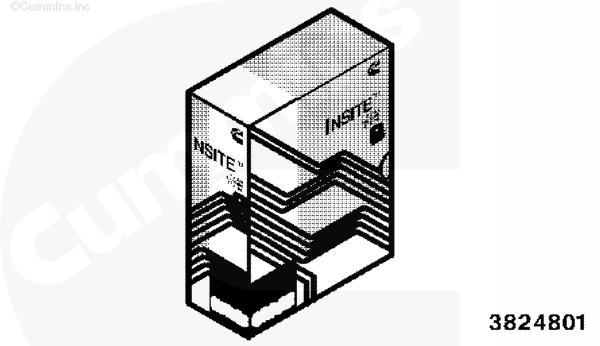

3886388

INSITE™ Software Kit

This kit contains INSITE™ software for use with Cummins engines. The kits are used to troubleshoot, program, and adjust electronic features.

Last Modified:  09-Jul-2002
