ISM, ISMe, and QSM11 – 022-001   Service Tools

Table of Contents

Exhaust System

Exhaust System

 TOC
Tool Number

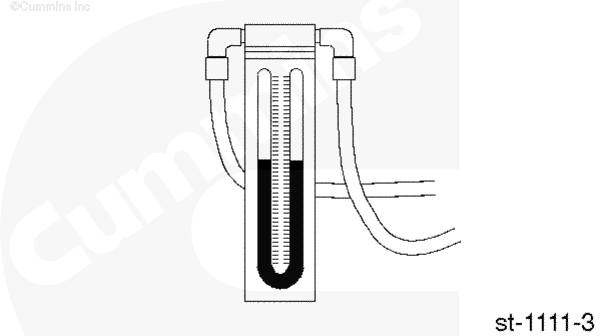

ST-1111-3
Manometer

Used to measure exhaust restriction.
Tool Number

ST-1273

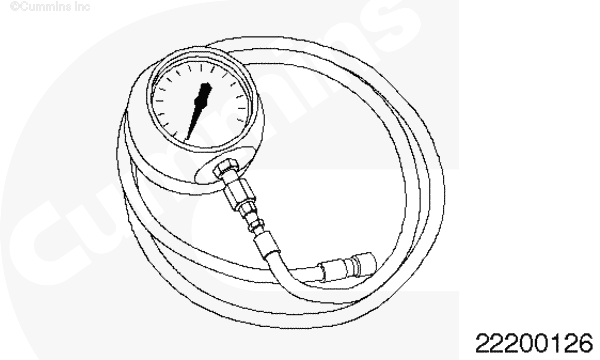

Pressure Gauge

Used to measure pressure in inches of mercury (in Hg).
Tool Number

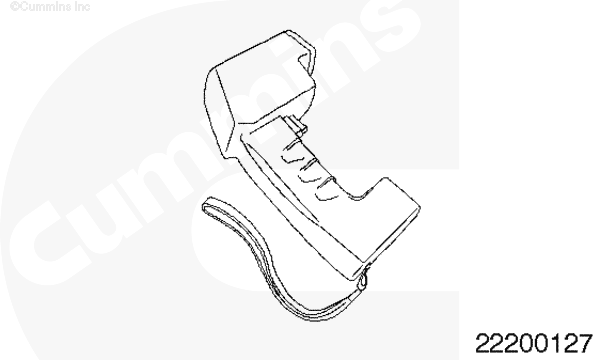

3164487
Infrared Thermometer

Used to measure the surface temperatures of exhaust system components.
Tool Number

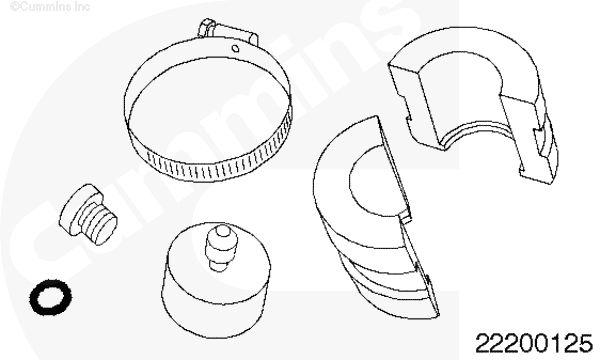

3164843
EGR Cooler Leak Test Kit

Used to diagnose EGR cooler leaks on ISM with CM870 engines.
Tool Number

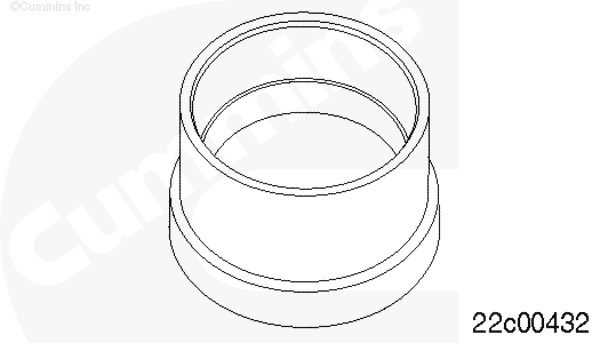

4918709
Exhaust Seal Installer

Used to install the exhaust manifold seal on ISM with CM876 engines.
Tool Number

4918576

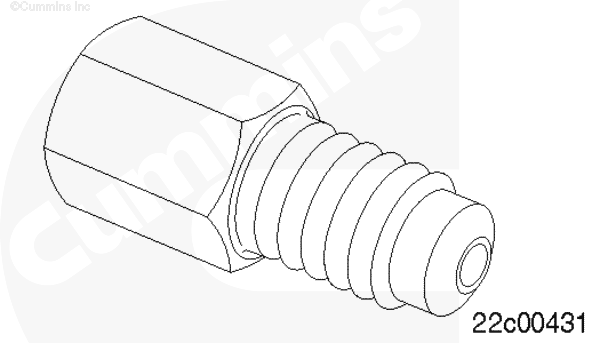

Pressure Adapter Fitting

Used to measure the pressure and pressure differences at various points in the aftertreatment system. The fitting is inserted into the thermistor ports of the aftertreatment system.
Tool Number

4919424
EGR Cooler Leak Test Kit

Used to pressure test and clean the EGR cooler on ISM with CM876 engines.
Tool Number

4918839

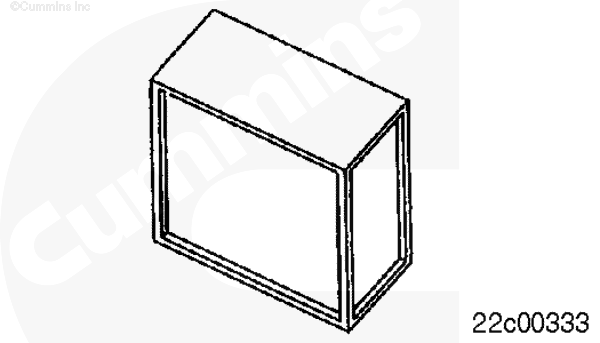

Diesel Particulate Filter Cleaner HEPA Filter

Used to replace the HEPA filter on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

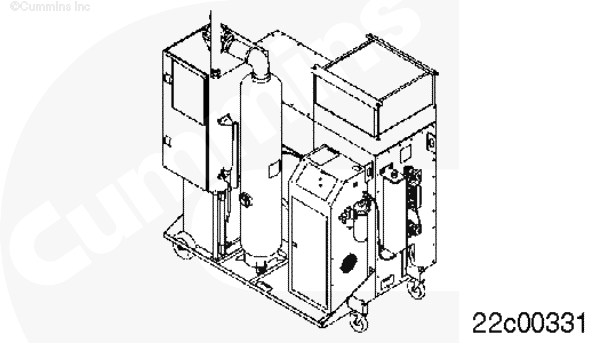

4918840
Diesel Particulate Filter Cleaner

This machine is used with diesel particulate filter cleaner adapter kit, Part Number 4918893 or 4919182, to clean the diesel particulate filter once it is removed from the vehicle. (U.S.A. only. Not intended for use in Canada.)
Tool Number

4918841

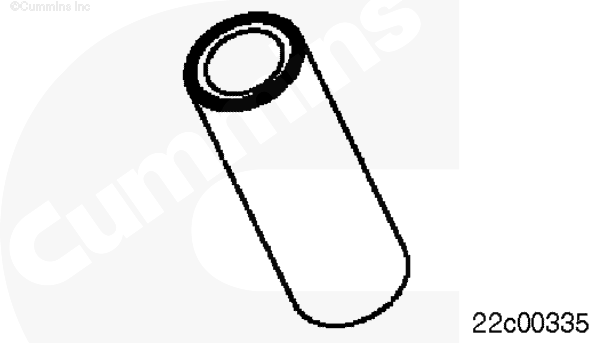

Diesel Particulate Filter Cleaner Vacuum Filter

Used to replace the vacuum filter on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

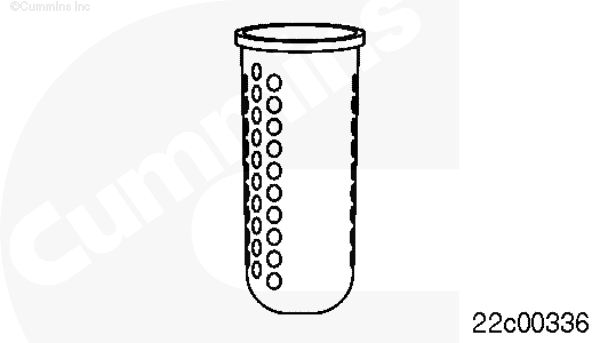

4918842

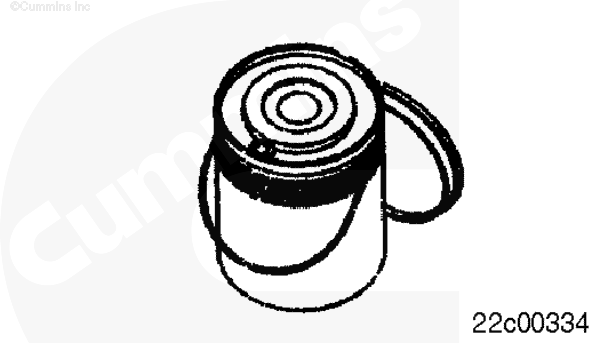

Diesel Particulate Filter Cleaner Canister Filter

Used to replace the canister filters on diesel particulate filter cleaner, Part Number 4918840. Two are required per machine.
Tool Number

4918851

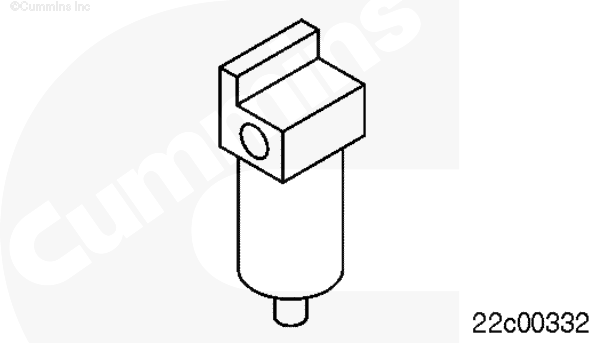

Diesel Particulate Filter Cleaner Water Separator

Used to replace the water separator on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

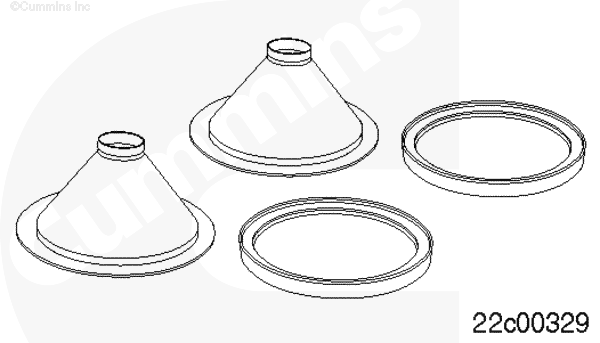

4918893

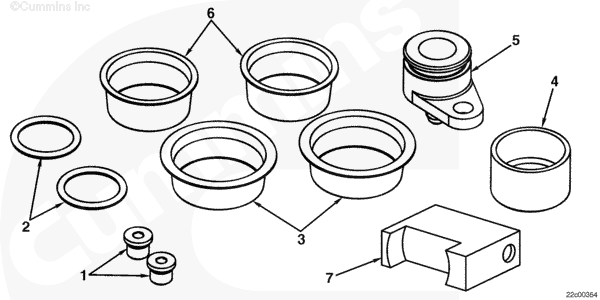

Diesel Particulate Filter Cleaner Adapter Kit

Used with Part Number 4918840 to adapt the diesel particulate filter to the cleaner.
Tool Number

4918896
Diesel Particulate Filter Cleaner Oil Separator Filter

Used to replace the oil separator filter on diesel particulate filter cleaner, Part Number 4918840.
Tool Number

4919052
Diesel Particulate Filter Cleaner

This machine is used with diesel particulate filter cleaner adapter kit, Part Number 4919172 or 4919182, to clean the diesel particulate filter once it is removed from the vehicle. (For use in the U.S.A and Canada.)
Tool Number

4919053
Diesel Particulate Filter Cleaner Canister Filter

Used to replace the canister filters on diesel particulate filter cleaner, Part Number 4919052. Two are required per machine.
Tool Number

4919054
Diesel Particulate Filter Cleaner HEPA Filter

Used to replace the HEPA filter on diesel particulate filter cleaner, Part Number 4919052.
Tool Number

4919182
Diesel Particulate Filter Cleaner Adapter Kit

Used with Part Number 4919052 or 4918840 to adapt an aftermarket or retro-fit diesel particulate filter to the cleaner.
Tool Number

4919403
Air Handling Clean Care Kit for ISM Engine Components

Contains a variety of caps to prevent contamination of engine air handling plumbing during service procedures.
Tool Number

4919425
Air Handling Clean Care Kit for Vehicle Plumbing

Contains a variety of caps to prevent contamination of vehicle air handling plumbing during service procedures.

Last Modified:  18-Jun-2009
