ISM, ISMe, and QSM11 – 200-001   Flow Diagram, Fuel System

Engine Views

 TOC

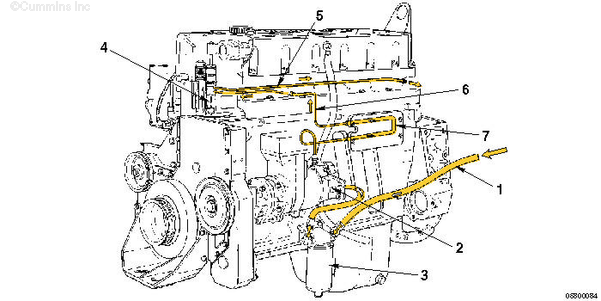

Automotive with CM875, CM870 and CM570

SMALL | MEDIUM | LARGE

  1. Fuel supply from tank
  2. Fuel pump
  3. Fuel filter
  4. Injector
  5. Fuel drain from injector
  6. Fuel to injector
  7. ECM cooling plate.

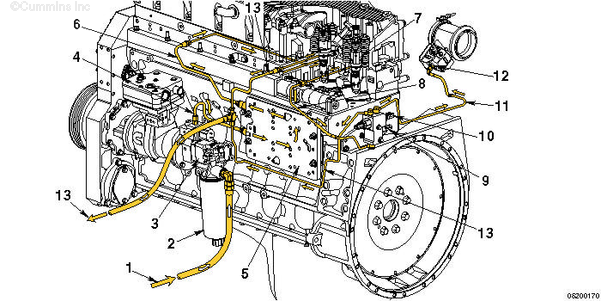

Automotive with CM876

SMALL | MEDIUM | LARGE

  1. Fuel supply from tank
  2. Fuel filter
  3. Fuel Pump
  4. Fuel supply to ECM cooler
  5. ECM cooling plate
  6. Fuel supply to injectors
  7. Injector
  8. Fuel supply to aftertreatment injector system
  9. Aftertreatment shutoff valve
  10. Aftertreatment pressure sensor
  11. Fuel supply to aftertreatment fuel injector
  12. Aftertreatment fuel injector
  13. Fuel drain to tank

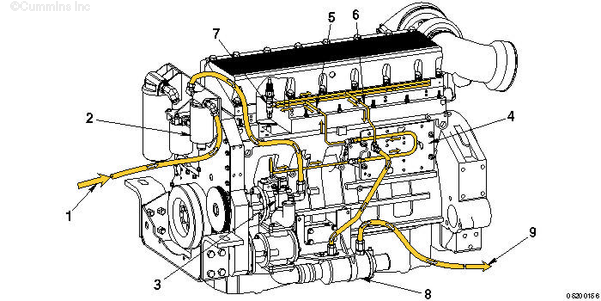

Marine Applications

SMALL | MEDIUM | LARGE

  1. Fuel supply from tank
  2. Fuel filter
  3. Fuel pump
  4. ECM cooling plate
  5. Fuel to injector
  6. Fuel drain to from injector
  7. Injector
  8. Fuel cooler
  9. Fuel return to supply tank

Industrial and Generator Drive

SMALL | MEDIUM | LARGE

  1. Fuel supply from tank
  2. Fuel pump
  3. Fuel filter
  4. Injector
  5. Fuel drain from injector
  6. Fuel to injector
  7. ECM cooling plate
Last Modified:  23-Jan-2009
