Electronic Control System Gas Plus Engines – FAULT CODE 2186

Sensor Supply Voltage (4) Circuit – Shorted Low

Overview

CODE REASON EFFECT
Fault Code: 2186
PID: S232
SPN: 620
FMI: 4
LAMP: Amber
SRT:

Sensor Supply Voltage (4) Circuit – Shorted Low. Low voltage detected on sensor supply voltage (4) .

Possible reduced performance.

Sensor Supply Voltage (4) Circuit

SMALL | MEDIUM | LARGE

Circuit Description

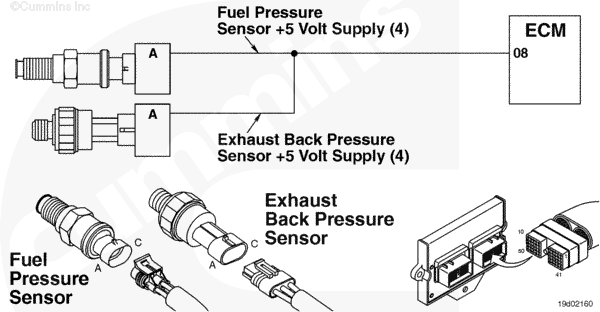

This circuit is the voltage supply for the primary fuel pressure sensor and exhaust back pressure sensor.

Component Location

The sensor supply voltage (4) circuit is contained in the wiring harness.

Shop Talk

The voltage supplies on the B and C Gas Plus engines are broken up into 1, 2, 3, and 4. On the L Gas Plus engines, voltage supplies are broken up into 1, 2, and 4.

Cautions and Warnings


 CAUTION

To reduce the possibility of damaging a new ECM, all other active fault codes must be investigated prior to replacing the ECM.

 CAUTION

To reduce the possibility of pin and harness damage, use the following test lead when taking a measurement:
Part Number 3822758 – male Deutsch/AMP/Metri-Pack test lead.

Troubleshooting Steps

STEPS SPECIFICATIONS
STEP 1. Check the fault codes.
  STEP 1A. Check for an inactive fault code. Fault Code 2186 inactive?
STEP 2. Check the sensors and sensor supply circuit.
  STEP 2A. Inspect the primary fuel pressure sensor and connector pins connected to sensor supply number 4. Dirty or damaged pins?
  STEP 2A-1. Check the circuit response.
  STEP 2B. Inspect the exhaust back pressure sensor and connector pins connected to sensor supply number 4. Dirty or damaged pins?
  STEP 2A-1. Check the circuit response.
STEP 3. Check the ECM and engine harness.
  STEP 3A. Inspect the ECM and engine harness connector pins. Dirty or damaged pins?
  STEP 3B. Check for a pin to pin short circuit in the engine harness. Greater than 100k ohms?
  STEP 3B-1. Check for a Pin short circuit to ground.
  STEP 3C. Check for an inactive fault code. Fault Code 2186 inactive?
STEP 4. Clear the fault codes.
  STEP 4A. Disable the fault code. Fault Codes 2186 inactive?
  STEP 4B. Clear the inactive fault codes. All fault codes cleared?


Guided Step 1 – Check the fault codes.

Guided Step 1A – Check for an inactive fault code.

Conditions

  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to read the fault codes.

Fault Codes 2186 inactive?

YES NO
No Repair No Repair


Guided Step 2 – Check the sensors and sensor supply circuits.

Guided Step 2A – Inspect the primary fuel pressure sensor and connector pins connected to sensor supply number 4.

Conditions

  • Turn keyswitch OFF
  • Disconnect the primary fuel pressure sensor from the engine harness.

Action

  • Corroded pins
  • Bent or broken pins
  • Pushed back or expanded pins
  • Wire insulation damaged
  • Moisture in or on the connector
  • Missing or damaged connector seals
  • Connector shell broken
  • Dirt or debris in or on the connector pins.

For general inspection techniques, refer to Component Connector and Pin Inspection, Procedure 019-361.

Dirty or damaged pins?

YES NO

Repair the damaged pins.

Repair or replace the engine harness, whichever has the damaged pins.

  • Flush the dirt, debris, or moisture from the connector pins using electronic contact cleaner, Part Number 3824510.
  • Install the appropriate connector seal if it is damaged or missing.
  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.
No Repair

Guided Step 2A-1 – Check the circuit response.

Conditions

  • Turn keyswitch OFF
  • Disconnect the primary fuel pressure sensor from the engine harness
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to read the fault codes.

Fault Code 2186 active?

YES NO
No Repair

A defective sensor has been detected.

Replace the primary fuel pressure sensor. Refer to Procedure 019-188.

Guided Step 2B – Inspect the exhaust back pressure sensor and connector pins connected to sensor supply number 4.

Conditions

  • Turn keyswitch OFF
  • Disconnect the exhaust back pressure sensor from the engine harness.

Action

  • Corroded pins
  • Bent or broken pins
  • Pushed back or expanded pins
  • Wire insulation damaged
  • Moisture in or on the connector
  • Missing or damaged connector seals
  • Connector shell broken
  • Dirt or debris in or on the connector pins.

For general inspection techniques, refer to Component Connector and Pin Inspection, Procedure 019-361.

Dirty or damaged pins?

YES NO

A defective connection has been detected in the sensor or harness connector.

Repair the damaged pins.

Repair or replace the engine harness, whichever has the damaged pins.

  • Flush the dirt, debris, or moisture from the connector pins using electronic contact cleaner, Part Number 3824510.
  • Install the appropriate connector seal if it is damaged or missing.
  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.
No Repair

Guided Step 2B-1 – Check the circuit response.

Conditions

  • Turn keyswitch OFF
  • Disconnect the exhaust back pressure sensor from the engine harness
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to read the fault codes.

Fault Code 2186 active?

YES NO
No Repair

A defective sensor has been detected.

Replace the exhaust back pressure sensor. Refer to Procedure 019-347.


Guided Step 3 – Check the engine harness.

Guided Step 3A – Inspect the ECM and engine harness connector pins.

Conditions

  • Turn keyswitch OFF
  • Disconnect the engine harness connector 1 and connector 2 from the ECM.

Action

  • Corroded pins
  • Bent or broken pins
  • Pushed back or expanded pins
  • Wire insulation damaged
  • Moisture in or on the connector
  • Missing or damaged connector seals
  • Connector shell broken
  • Dirt or debris in or on the connector pins.

For general inspection techniques, refer to Component Connector and Pin Inspection, Procedure 019-361.

Dirty or damaged pins?

YES NO

A defective connection has been detected in the ECM engine connector or engine harness connector.

Repair the damaged pins.

Repair or replace the engine harness, whichever has the damaged pins.

  • Flush the dirt, debris, or moisture from the connector pins using electronic contact cleaner, Part Number 3824510.
  • Install the appropriate connector seal if it is damaged or missing.
  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.
No Repair

Guided Step 3B – Check for a pin to pin short circuit in the engine harness.

Conditions

  • Turn keyswitch OFF
  • Disconnect engine harness connector 1 and connector 2 from the ECM
  • Disconnect the primary fuel pressure sensor and exhaust back pressure sensor from the engine harness
  • Disconnect all components connected to sensor supply number 4.

Action

  • Measure the resistance between the sensor SUPPLY number 4 pin in engine harness ECM connector 1 to all other pins in the engine harness connector 1.
  • Measure the resistance between the sensor SUPPLY number 4 pin in engine harness ECM connector 1 to all other pins in the engine connector 2.

Refer to the circuit diagram or wiring diagram for connector pin identification.

For general measurement techniques, refer to the Resistance Measurements Using a Multimeter and Wiring Diagram, Procedure 019-360.

Greater than 100k ohms?

YES NO
No Repair

A pin to pin short circuit on the sensor supply number 4 line has been detected in the engine harness.

Repair or replace the engine harness, whichever has the damaged pins.

  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.

Guided Step 3B-1 – Check for a pin short circuit to ground.

Conditions

  • Turn keyswitch OFF
  • Disconnect engine harness connector 1 and connector 2 from the ECM
  • Disconnect the primary fuel pressure sensor and exhaust back pressure sensor from the engine harness
  • Disconnect all components connected to sensor supply number 4.

Action

  • Measure the resistance between the sensor SUPPLY number 4 pin in engine harness ECM connector 1 and ground.

Refer to the circuit diagram or wiring diagram for connector pin identification.

For general measurement techniques, refer to the Resistance Measurements Using a Multimeter and Wiring Diagram, Procedure 019-360.

Greater than 100k ohms?

YES NO
No Repair

A pin to ground short circuit on the sensor supply number 4 line has been detected in the engine harness.

Repair or replace the engine harness, whichever has the damaged pins.

  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.

Guided Step 3C – Check for an inactive fault code.

Conditions

  • Connect all components
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to read the fault codes.

Fault Codes 2186 inactive?

YES NO
No Repair

Replace the ECM. Call for pre-authorization.

Refer to procedure 019-031.


Guided Step 4 – Clear the fault codes.

Guided Step 4A – Disable the fault code.

Conditions

  • Connect all components
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Start the engine and let it idle for one minute.
  • Use INSITE™ electronic service tool to verify that Fault Code is inactive.

Fault Code 2186 inactive?

YES NO
No Repair No Repair

Guided Step 4B – Clear the inactive fault codes.

Conditions

  • Connect all components
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to erase the inactive fault codes.

All fault codes cleared?

YES NO
No Repair No Repair
Repair complete
