Electronic Control System Gas Plus Engines – FAULT CODE 227 – B and C Gas Plus

Sensor Supply Voltage 5 Volt (2) – Shorted High

Overview

Sensor Supply Voltage 5 Volt (2) – Shorted High

CODE REASON EFFECT
Fault Code: 227
PID: 232
SPN: 1080
FMI: 3
LAMP: Amber
SRT:

Sensor Supply Voltage 5 Volt (2) – Shorted High. High voltage detected on sensor supply number 2 circuit.

Possible reduced performance.

Sensor Supply Voltage 5 Volt (2)
SMALL | MEDIUM | LARGE

Circuit Description

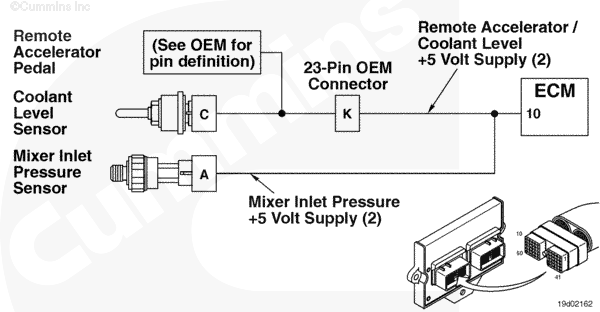

This circuit is the voltage supply for the remote accelerator pedal position sensor, mixer inlet pressure sensor, and coolant level sensor.

Component Location

The sensor supply voltage 5 Volt (2) circuit is contained in the wiring harness.

Shop Talk

The voltage supplies on the B and C Gas Plus engines are broken up into 1, 2, 3, and 4.

Cautions and Warnings

 CAUTION

To reduce the possibility of damaging a new ECM, all other active fault codes must be investigated prior to replacing the ECM.
 CAUTION

To reduce the possibility of pin and harness damage, use the following test lead when taking a measurement:
Part Number 3822758 – male Deutsch/AMP/Metri-Pack test lead.

Troubleshooting Steps

STEPS SPECIFICATIONS
STEP 1. Check the fault codes.
  STEP 1A. Check for an inactive fault code. Fault Codes 227 inactive?
STEP 2. Check the ECM and engine harness.
  STEP 2A. Inspect the ECM and engine harness connector pins. Dirty or damaged pins?
  STEP 2B. Check for a pin to pin short circuit in the engine harness. Greater than 100k ohms?
  STEP 2C. Check for an inactive fault code. Fault Code 227 inactive?
STEP 3. Clear the fault code.
  STEP 3A. Disable the fault code. Fault Code 227 inactive?
  STEP 3B. Clear the inactive fault codes. All fault codes cleared?

Guided Step 1 – Check the fault codes.

Guided Step 1A – Check for an inactive fault code.

Conditions

  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to read the fault codes.

Fault Code 227 inactive?
YES NO
No Repair No Repair

Guided Step 2 – Check the ECM and engine harness.

Guided Step 2A – Inspect the ECM and engine harness connector pins.

Conditions

  • Turn keyswitch OFF
  • Disconnect the engine harness connector 1 and connector 2 from the ECM.

Action

  • Corroded pins
  • Bent or broken pins
  • Pushed back or expanded pins
  • Wire insulation damaged
  • Moisture in or on the connector
  • Missing or damaged connector seals
  • Connector shell broken
  • Dirt or debris in or on the connector pins.

For general inspection techniques refer to Component Connector and Pin Inspection, Procedure 019-361.

Dirty or damaged pins?
YES NO

A defective connection has been detected in the ECM or engine harness connector.

Repair the damaged pins. Repair or replace the engine harness, whichever has the damaged pins.

  • Flush the dirt, debris, or moisture from the connector pins using electronic contact cleaner, Part Number 3824510.
  • Install the appropriate connector seal if it is damaged or missing.
  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.
No Repair

Guided Step 2B – Check for a pin to pin short circuit in the engine harness.

Conditions

  • Turn keyswitch ON
  • Disconnect the engine harness connector 1 and connector 2 from the ECM.
  • Disconnect the remote accelerator pedal position sensor, mixer inlet pressure sensor, and coolant level sensor from the engine harness.
  • Disconnect all components connected to sensor supply number 2.

Action

  • Measure the resistance between the sensor SUPPLY number 2 pin in the engine harness ECM connector 2 and all other pins in the engine connector 2.
  • Measure the resistance between the sensor SUPPLY number 2 pin in the engine harness ECM connector 2 and all other pins in the engine connector 1.

Refer to the circuit diagram or wiring diagram for connector pin identification.

For general resistance measurement techniques refer to the Resistance Measurements Using a Multimeter and Wiring Diagram, Procedure 019-360.

Greater than 100k ohms?
YES NO
No Repair

A pin to pin short circuit on the sensor SUPPLY number 2 line has been detected in the engine harness.

Repair or replace the engine harness.

  • Repair the engine harness. Refer to Procedure 019-204.
  • Replace the engine harness. Refer to Procedure 019-043.

Guided Step 2C – Check for an inactive fault code.

Conditions

  • Connect all components
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to read the fault codes.

Fault Code 227 inactive?
YES NO
No Repair

Replace the ECM. Call for pre-authorization. Refer to Procedure 019-031.

Guided Step 3 – Clear the fault code.

Guided Step 3A – Disable the fault code.

Conditions

  • Connect all components
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Start the engine and let it idle for one minute.
  • Use INSITE™ electronic service tool to verify that the fault code is inactive?

Fault Code 227 inactive?
YES NO
No Repair No Repair

Guided Step 3B – Clear the inactive fault codes.

Conditions

  • Connect all components
  • Turn keyswitch ON
  • Connect INSITE™ electronic service tool.

Action

  • Use INSITE™ electronic service tool to erase the inactive fault codes.

All fault codes cleared?
YES NO
No Repair No Repair
Repair complete
Appropriate troubleshooting charts
